A flow control valve in a pneumatic system regulates compressed-air flow and therefore influences actuator speed, cycle time and motion stability. It does not normally reverse cylinder direction; that is the job of a directional valve. Instead, it creates an adjustable restriction in the supply or exhaust path.
The location and direction of that restriction matter. A meter-out circuit that controls exhaust air can behave very differently from a meter-in circuit that restricts incoming air. This guide explains the main designs, shows how to set them up and identifies the information needed when selecting pneumatic flow-control equipment.
Quick Answer: How to Control Pneumatic Cylinder Speed
For many double-acting pneumatic cylinders, a one-way flow control valve is installed at each cylinder port in a meter-out arrangement. The check valve allows relatively free supply flow while the adjustable needle restricts exhaust flow. This creates back pressure that often gives steadier speed under changing load. The correct circuit still depends on actuator, load, orientation and safety analysis.
How Pneumatic Flow Control Works
Compressed air is compressible, so cylinder speed is not determined by orifice area alone. Supply pressure, downstream pressure, tubing volume, directional-valve capacity, exhaust restriction, load, seal friction and cushioning all interact.
Reducing the flow area lowers the rate at which a chamber fills or empties. That changes piston speed. A restriction that is too small can make a cylinder slow or cause it to stop before completing the stroke. A restriction that is too large may allow impact, unstable motion or excessive kinetic energy at the end cap.
Flow control should not be used to compensate for an undersized directional valve, long narrow tubing, poor air preparation or a cylinder that is improperly sized for the load. Evaluate the complete pneumatic circuit.
Types of Flow Control Valves in Pneumatic Systems
Bidirectional throttle valve
A simple throttle restricts flow in both directions. It can set a general flow limit, but it does not distinguish supply from exhaust. It may be useful in steady-flow branches or where symmetric restriction is intentional.
One-way flow control valve
A one-way flow controller combines an adjustable throttle with a check valve. Flow is restricted in one direction and passes more freely in the reverse direction. This is the most common arrangement for adjusting pneumatic-cylinder speed.
Festo's explanation of one-way flow control describes how the device can regulate speed by restricting supply or exhaust depending on orientation.
Exhaust flow controller
An exhaust controller mounts at a directional-valve exhaust port or close to the actuator outlet. It can control a group of movements or protect an exhaust path, but remote placement adds compressed volume between the cylinder and restriction. Direct cylinder-port mounting usually gives a more immediate relationship between adjustment and motion.
Precision and proportional flow valve
Manual needle adjustment is suitable when a fixed speed can be commissioned locally. A proportional flow valve uses an electrical command to change flow dynamically. It is useful when recipes, ramping or closed-loop flow control are required, but it needs appropriate sensing and control logic.
Quick-exhaust valve
A quick-exhaust valve is not primarily a throttling device. It vents air near the cylinder to increase speed. If used with flow controls, the circuit must ensure that the intended restriction is not bypassed.
Meter-In vs Meter-Out Control
Meter-in control
Meter-in control restricts air entering the actuator while exhaust air leaves relatively freely. It can be suitable for loads that resist motion and do not tend to overrun the piston. Response can be quick, and the cylinder uses only the supply flow admitted through the restriction.
The weakness is that an external or gravity load may pull the piston faster than the chamber fills. This can produce unstable motion. Meter-in control therefore requires careful review for vertical cylinders, overrunning loads and large inertia.
Meter-out control
Meter-out control allows supply air into the driving chamber and restricts air leaving the opposite chamber. The exhaust restriction creates back pressure, which can resist an overrunning load and improve speed stability.
The SMC comparison of meter-in and meter-out control notes that meter-out control is generally easier to adjust and more stable under load variation, while also warning that loss of exhaust-side pressure can permit sudden extension.
Bleed-off control
In a bleed-off circuit, some supply flow is diverted away from the actuator. It can reduce energy entering the actuator branch, but it wastes compressed air if continuously exhausted and is less common for ordinary cylinder speed setting.
| Method | Restriction location | Typical strength | Main caution |
|---|---|---|---|
| Meter-in | Supply to cylinder | Simple for resisting loads | Load may overrun |
| Meter-out | Exhaust from cylinder | Stable speed and load control | Needs exhaust back pressure |
| Bidirectional | Both directions | General flow limiting | Affects supply and exhaust |
| Proportional | Controlled flow path | Dynamic setpoint | Needs electronics and tuning |
A meter-out circuit needs air on the exhaust side to create restriction. If exhaust-side pressure is lost, an overrunning or gravity load may extend or drop without control when supply returns. Design the startup sequence and load-safety measures around this behavior; do not rely on the knob setting alone.
Where to Install and How to Adjust the Valve
For direct and repeatable cylinder control, mount the one-way valve close to the cylinder port. Long tubing between the actuator and restriction stores compressed air and can make adjustment less predictable.
Use the flow arrow or circuit symbol to confirm orientation. A valve installed backward changes meter-out to meter-in, or vice versa. Do not rely only on knob position or fitting shape.
Commission a double-acting cylinder in a controlled sequence:
- Isolate energy and confirm the mechanical load is safe. Follow the machine's lockout procedure before touching any adjustment.
- Close each adjustment gently, then reopen enough to permit slow movement. Start from a conservative restriction rather than a wide-open setting.
- Restore pressure using the machine's approved startup procedure. A sudden pressure return on an uncontrolled chamber can cause a jump.
- Adjust one direction at a time in small increments. Separate extension and retraction so one change does not mask the other.
- Cycle the actuator under realistic load and temperature. Production conditions change friction, load and supply behavior.
- Check end cushioning, impact, repeatability and full-stroke completion. The setting must hold across normal production cycles.
- Lock the setting where the product provides a lock nut or push lock. Prevent unintended changes from vibration or operator contact.
- Record the final position or measured cycle time. A baseline makes later troubleshooting reproducible.
Never stand in the actuator path while tuning. Flow control changes speed but does not provide safe isolation or load holding. Use appropriate lockout, guarding and load-control measures.
How to Select a Pneumatic Flow Control Valve
Match port and tubing size
The fitting must match cylinder thread, tube outside diameter and regional thread standard. An adapter stack can add leakage paths and dead volume. Confirm NPT, G, R or metric threads instead of assuming similar-looking connections are interchangeable.
Check required flow
Estimate actuator air consumption from bore, rod diameter, stroke, pressure and cycle rate. Then check the controller's rated flow and pressure conditions. A small valve may limit maximum speed even when fully open; an oversized one may make fine adjustment difficult.
Confirm pressure and temperature
Use the actual supply range, not only a nominal compressor setting. Check ambient and compressed-air temperature, material compatibility and any vacuum restrictions. Moisture, oil and particles can affect a fine metering orifice.
Choose adjustment and mounting
Options include elbow, banjo, inline and manifold styles. Select accessible adjustment, locking method and mounting direction. In crowded equipment, verify that the knob can be reached without creating a pinch hazard.
Consider the failure state
Ask what happens if tubing breaks, pressure is lost, the restriction is opened fully or the check element sticks. A flow controller is not a safety-rated load-holding valve. Vertical loads may require a rod lock, brake, pilot-operated check or engineered safety function.
For the wider actuation decision, compare our guide on pneumatic valves vs electric valves to understand where each drive technology fits.
Troubleshooting Pneumatic Speed Control
The cylinder moves too fast
Check valve orientation and whether exhaust is bypassing the restriction through a quick-exhaust path. Confirm that the adjustment has not loosened. Review supply pressure, load change and directional-valve exhaust plumbing.
Motion is jerky
Stick-slip can come from low speed, seal friction, side loading, poor alignment or inadequate lubrication. Increase speed slightly as a test, check the mechanical guide and ensure the cylinder is not carrying a radial load it was not designed to support.
Speed changes with load
Confirm whether the circuit is meter-in. Meter-out may improve stability for an overrunning load, but the conversion requires a safety review. Also check regulator droop, shared supply demand and exhaust back pressure.
The cylinder will not complete its stroke
The restriction may be too tight, supply pressure may fall during motion, or the cylinder force margin may be inadequate. Check pressure at the cylinder while moving rather than only at the regulator with no flow.
Adjustment has little effect
The valve may be oversized, installed at the wrong location or bypassed. The directional valve, silencer or tubing may already be the controlling restriction. Check each component's effective flow capacity.
Common Mistakes
- Installing a one-way controller backward
- Throttling both cylinder ports almost closed
- Using flow control as a substitute for safe load holding
- Mounting the restriction far from the cylinder without considering dead volume
- Ignoring muffler contamination and exhaust back pressure
- Selecting only by thread size
- Tuning with no production load
- Increasing supply pressure to fix a flow-capacity problem
- Confusing a pneumatic speed controller with a process control valve
Pneumatic Flow-Control RFQ Checklist
Provide cylinder bore, rod diameter, stroke, load, orientation, target stroke time, supply-pressure range, tubing size and length, port thread, directional-valve model, cycle frequency and ambient conditions. State whether meter-in, meter-out, inline or cylinder-mounted control is required and describe what must happen after air loss.
Commissioning a Double-Acting Cylinder
A disciplined commissioning sequence prevents the speed controls from hiding a more fundamental problem. Start with the machine isolated, the load secured and both one-way controllers set to a conservative restriction. Confirm that the arrow or circuit symbol gives free flow toward the cylinder and restricted flow away from it for a meter-out arrangement. Verify the directional valve's center condition and determine whether either cylinder chamber can exhaust when the machine is stopped.
Restore pressure gradually through the approved startup circuit. Jog the cylinder with no process load where the risk assessment permits. Open the exhaust controller in small increments until the extension speed approaches the target, then tune the controller on the opposite port for retraction. Count turns or record the indicator position so the initial setting can be restored. Do not open both controls widely at once simply to reduce commissioning time.
Repeat the cycle under the actual production load. Measure stroke time in both directions and watch pressure near the cylinder during motion. A falling supply pressure can indicate an undersized regulator, directional valve, tube or fitting. A high exhaust-side pressure may be intentional for meter-out stability, but excessive back pressure reduces available cylinder force. If the actuator stops before the end of travel, confirm force margin before opening the controller further.
Test abnormal conditions included in the machine safety plan: startup after air loss, an interrupted cycle, a change in load and the commanded stop condition. Pneumatic flow controls adjust speed; they are not certified load-holding devices and should not be used as the only protection against gravity or stored energy.
Finally, secure the adjustment, label the controlled direction and document cylinder bore, stroke, load, pressure, controller turns and measured cycle time. Include tubing length, silencer condition and the pressure observed while moving, because these details make later troubleshooting reproducible.
Recheck the settings after seals have run in and after any change to production load, regulator setting, tubing or exhaust silencers. Mark unauthorized adjustments clearly. A stable cycle depends on the entire air path, so a recorded baseline helps maintenance teams distinguish a valve-setting change from a supply or mechanical problem.
Frequently Asked Questions
What does a pneumatic flow control valve control?
It controls compressed-air flow through an adjustable restriction. On a cylinder circuit, changing flow changes how quickly a chamber fills or empties and therefore changes piston speed. It does not normally select direction, regulate supply pressure or provide safe mechanical load holding.
Is meter-in or meter-out better?
Meter-out is commonly preferred for double-acting cylinders because exhaust back pressure can stabilize speed against load changes. Meter-in can work well for loads that resist motion. Neither is universally better; load direction, inertia, cylinder orientation, startup behavior and safety requirements determine the correct circuit.
Why use a check valve with the throttle?
The check valve permits relatively free flow in one direction while the needle restricts the other. This allows separate speed adjustment for extension and retraction. Without the check path, a simple throttle restricts both supply and exhaust and may make the two directions interact.
Can one flow controller set both cylinder directions?
A single controller can restrict a common exhaust or supply, but separate one-way controllers at both cylinder ports usually provide independent extension and retraction adjustment. The exact arrangement depends on directional-valve ports, desired motion and whether a quick-exhaust device is present.
Why does a cylinder jump at startup?
One chamber may have lost back pressure, leaving an overrunning load uncontrolled when supply returns. A meter-out circuit needs air on the exhaust side to create restriction. Use a controlled pressure buildup, correct circuit design and load-safety measures rather than relying on knob adjustment alone.
Where should the valve be installed?
For many cylinder-speed applications, install it directly at or close to the cylinder port. This reduces the compressed volume between actuator and restriction. Follow the manufacturer's flow direction, mounting and accessibility instructions, and ensure the adjustment cannot be changed unintentionally.
Conclusion
A flow control valve in a pneumatic system is a small component with a large effect on motion. Correct results depend on valve direction, meter-in or meter-out logic, location, flow capacity, load and startup behavior. Commission the restriction gradually and verify motion under the real production load.

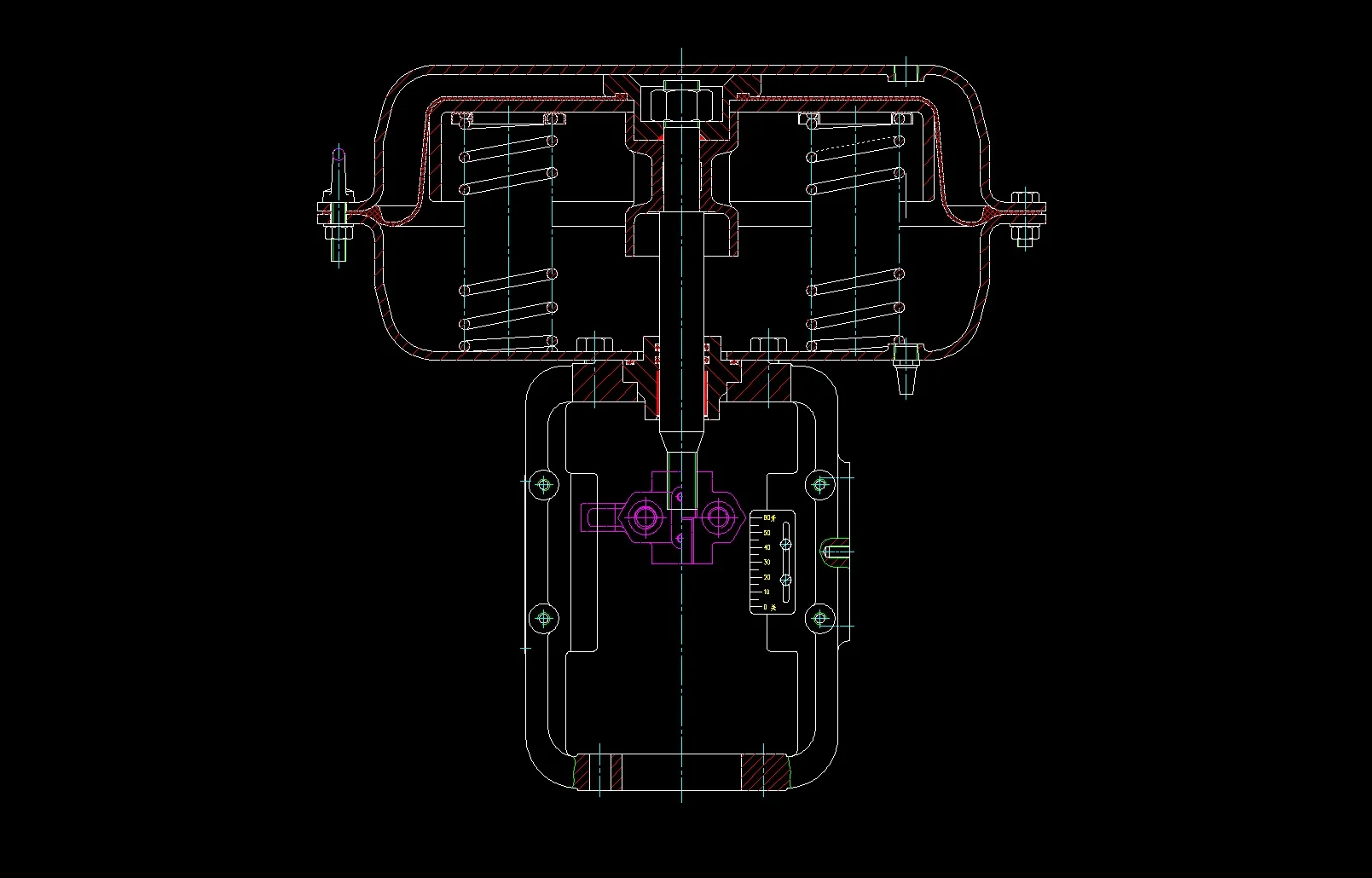

If your automated valve or pneumatic actuator package has uncertain air, signal or fail-action requirements, share the operating conditions and control sequence. JIANENG Valve can help organize the application information for an appropriate industrial control valve and actuator review.
