A steam control valve regulates steam flow or downstream pressure by changing a restriction in response to a controller, pilot or self-acting mechanism. Reliable selection requires steam load, upstream pressure, downstream pressure, temperature or degree of superheat, operating range and the control objective—not simply line size.
For most projects, a globe-style valve is the starting point because it offers a defined flow path, characterized trim and suitable actuator arrangements. Rotary valves can also fit some large-capacity duties, but every option must be checked for compressible-flow sizing, noise, velocity, shutoff and actuator force or torque.
Key Takeaways
- Steam is compressible, so liquid sizing equations are not suitable.
- Minimum, normal and maximum loads are needed to evaluate both capacity and controllability.
- Saturated and superheated steam require different property inputs.
- A large pressure ratio can create choked flow, high outlet velocity and aerodynamic noise.
- The actuator must close and seat the valve at the worst differential pressure and minimum available supply.
What Is a Steam Control Valve?
A steam control valve is the final control element in a pressure, temperature or flow loop. The controller measures the process, compares it with a setpoint and commands the actuator to reposition the valve. A self-operated regulator uses process pressure or temperature directly instead of an external controller, while an automated valve may use pneumatic or electric actuation.
Steam valves commonly control heat exchangers, reboilers, dryers, sterilizers, tracing headers, humidification equipment, turbine auxiliaries and pressure-reducing stations. The duty may be load control, downstream pressure control, temperature control or controlled startup. Each creates different sizing and response requirements.
Globe bodies are widely used because linear travel and shaped trim can provide useful throttling behavior. Read why globe valves are used for throttling for the basic flow-path and trim comparison.
Steam Data Required for Sizing
Steam condition
State whether the steam is saturated or superheated. For saturated steam, pressure defines saturation temperature, but the calculation still needs a consistent pressure basis. For superheated steam, provide pressure and actual temperature or degree of superheat. If steam quality or moisture is uncertain, identify that limitation because wet steam can affect erosion and capacity.
Operating cases
Prepare at least minimum, normal and maximum continuous load. Add startup, warm-up, cleaning or upset cases only when they are real design requirements. For each case, provide:
| Parameter | Minimum | Normal | Maximum |
|---|---|---|---|
| Steam mass flow | Required | Required | Required |
| Upstream pressure | Required | Required | Required |
| Downstream pressure | Required | Required | Required |
| Temperature / superheat | Required | Required | Required |
Label pressure as gauge or absolute. Compressible-flow calculations use absolute pressure relationships, and mixing the two can materially change the result.
System and control details
Include pipe size and schedule, equipment duty, control variable, normal valve position, allowable noise, leakage requirement, fail action, air supply or voltage and control signal. State whether the downstream system can be isolated or whether the valve may see full upstream pressure when closed.
How Steam Control Valve Sizing Works
Steam sizing relates mass flow to upstream pressure, pressure ratio, temperature or specific volume, valve flow coefficient and expansion behavior. As downstream pressure falls, flow initially increases. At a limiting pressure ratio, the controlling section can reach choked conditions, after which further downstream-pressure reduction does not provide the proportional capacity increase predicted by a simple pressure-drop relationship.
IEC 60534-2-1 provides sizing equations for compressible and incompressible fluids under installed conditions. Manufacturer software based on IEC or harmonized ISA methods can calculate required Cv/Kv, predicted travel and noise, but the output is only as reliable as the input cases.
The control valve sizing guide explains Cv, Kv, pressure allocation, travel and severe-service checks in more detail. For steam, pay particular attention to absolute pressure, superheat, pressure ratio and outlet velocity.
Why line-size selection fails
Steam specific volume increases as pressure drops, so downstream volumetric flow can be much larger than upstream flow. The control valve or outlet pipe may need an expanded connection even when the upstream line is smaller. Conversely, a line-size valve can be badly oversized if the required Cv is modest.
An oversized steam valve may operate close to the seat at normal load. Small movement then creates a large percentage change in capacity, causing hunting and rapid trim wear. An undersized valve may remain fully open without reaching load or downstream pressure.
Valve Style, Trim and Characteristic

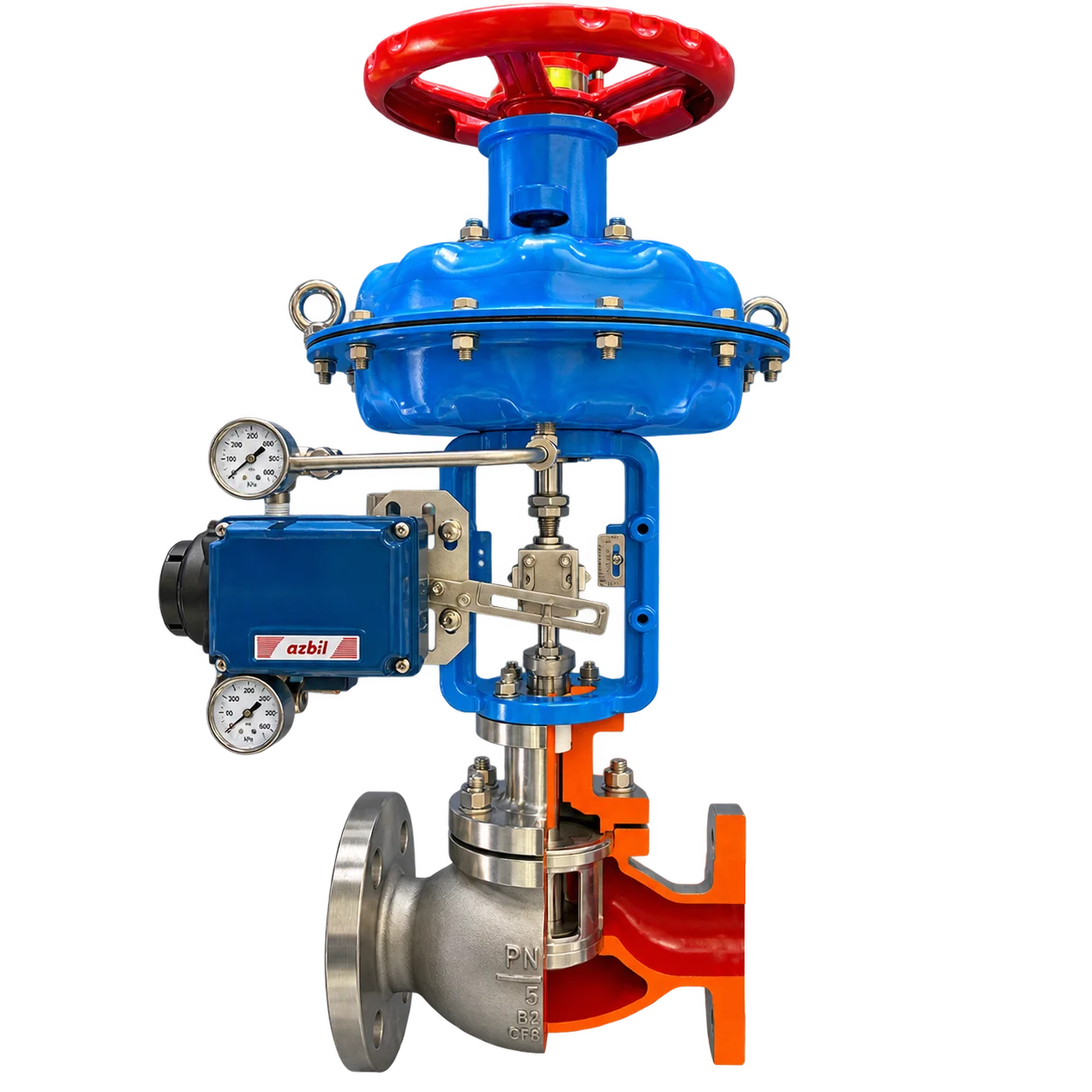

Globe control valve
A single-seat globe valve offers a direct shutoff path and is common in smaller and medium steam duties. Cage-guided trims can provide robust guidance, characterized flow areas and options for staged pressure reduction or noise treatment. Balanced trim reduces actuator force but may introduce additional leakage paths or seals that must suit temperature.
Rotary control valve
Eccentric butterfly, segmented ball and other rotary valves can provide high capacity in a compact body. They may fit large lines or moderate pressure-drop duties, but control range, shutoff, dynamic torque and noise must be evaluated. The best choice depends on capacity and installed behavior rather than a universal preference.
For an overview of available body styles, see control valve types used in industrial applications.
Flow characteristic
Equal-percentage trim is often considered when the system pressure drop changes widely with load. Linear trim can suit duties where valve pressure drop is relatively stable or where the controlled process benefits from a linear relationship. The installed characteristic depends on the valve and the system; the catalog’s inherent curve is not the complete loop response.
Severe pressure drop and noise
High pressure reduction can create aerodynamic noise, vibration and high outlet velocity. Possible responses include staged or multi-hole trim, a larger outlet, a downstream diffuser, insulation, thicker pipe or pressure reduction divided between valves. Noise treatment must be based on a calculation and piping review rather than a generic “low-noise” label.
Actuator and Fail Action
The actuator must overcome pressure force, seat load, packing friction and any additional mechanical force across the required stroke. Use the maximum shutoff differential pressure, not normal operating drop. For pneumatic actuators, calculate with minimum available air pressure after regulator and line losses.
Fail-closed is common when loss of control energy should stop steam to heating equipment. Fail-open or fail-in-place may be required for other process-safety functions. The project hazard review determines the fail action; valve tradition does not.
A positioner is normally used for accurate modulating service, especially where packing friction or high pressure force affects response. Specify signal, action, feedback, air set, filter regulator, solenoid, limit switches and hazardous-area requirements as applicable.
Installation and Commissioning
Install the valve with the marked flow direction and within the manufacturer’s actuator-orientation limits. Provide upstream isolation, a strainer where required, pressure indication and a safe bypass only when the operating philosophy permits it. Support piping independently and provide access for trim, packing and actuator maintenance.
Steam lines need drainage. Condensate collecting upstream of the valve can cause water hammer, erosion and unstable control, so separators, drip legs and steam traps may be needed according to the system design. The downstream pipe may require enlargement because the steam volume increases after pressure reduction.
During commissioning, warm the line gradually, verify trap operation and check the valve at low, normal and high load. Confirm controller action, positioner calibration, fail movement, seat leakage and downstream pressure stability. Record actual inlet and outlet pressure, travel and load for later troubleshooting.
Steam demands compressible-flow sizing. Treating steam like a liquid is one of the most common causes of unstable control, hunting and rapid trim wear. Always use a compressible-flow method (such as IEC 60534-2-1), work in absolute pressure, and verify both minimum and maximum load cases before selecting a valve size.
Common Steam Control Valve Mistakes
- Sizing from nominal pipe diameter
- Using a liquid equation for steam
- Omitting minimum load and turndown
- Mixing gauge and absolute pressure
- Treating saturated and superheated steam as the same input
- Ignoring choked flow, noise and outlet velocity
- Sizing the actuator at normal instead of shutoff differential pressure
- Installing without adequate condensate drainage
- Reducing pipe size immediately downstream of a letdown valve
- Specifying leakage class without an applicable test method and condition
Steam Control Valve RFQ Checklist
- Saturated or superheated steam
- Minimum, normal and maximum mass flow
- Upstream and downstream pressure for every case
- Temperature or degree of superheat
- Pipe size, schedule and connection standard
- Control objective and required response
- Valve body and trim style
- Body, trim, seat and packing materials
- Leakage and test requirements
- Noise limit and downstream velocity criteria
- Actuator supply, signal, fail action and accessories
- Design pressure, design temperature and applicable standards
Frequently Asked Questions
Why are globe valves common for steam control?
Globe valves provide a defined throttling path, characterized trim options, guided linear motion and actuator arrangements suited to pressure force and seat loading. Other valve styles can work, but they must meet the same capacity, controllability, noise, shutoff and material requirements.
Can a steam control valve be smaller than the pipe?
Yes. The required Cv/Kv can lead to a valve body or trim smaller than the connected line. Reducers and outlet expansion must be included in the sizing and noise analysis, and the downstream pipe must handle the increased steam volume.
What is choked flow in a steam valve?
Choked flow occurs when the steam reaches a limiting condition at the controlling restriction. Further reduction in downstream pressure no longer produces the proportional flow increase expected below that limit. Capacity, noise and velocity calculations must account for it.
Should a steam control valve fail closed?
Often, but not always. Fail position follows the process-safety requirement. Heating equipment may need fail-closed action to stop energy input, while another process may require flow to continue. Document the consequence of air, power and signal loss before choosing the actuator.
Conclusion
A steam control valve must be sized as a compressible-flow device and selected as a complete valve-actuator assembly. Minimum, normal and maximum load, pressure ratio, steam condition, noise, outlet velocity, shutoff and fail action all affect the final configuration.
For a steam valve review, share the mass-flow cases, inlet and outlet pressure, temperature or superheat, piping, control objective, actuator supply and applicable standards. Jianeng Valve can help organize the datasheet and review the proposed valve, trim and actuator before quotation.
